A snake-like Robotic Tentacle Manipulator developed by army

By Damir Beciri
One Comment28 July 2010

army-mil-robotic-tentacle-manipulator-1Development of snake-like technology underway at the U.S. Army Research Laboratory is moving the military toward sending more autonomous systems instead of Soldiers on search-and-rescue missions, a top priority in the most dangerous mission areas. Army researchers call it the Robotic Tentacle Manipulator, a developmental project that expands on snake robotics research introduced at Carnegie Mellon University’s Robotics Institute.

This new work has resulted in the arrangement of the bases of several snakes in a circular array that functions like a team using multiple parts of their bodies to manipulate an object, scan a room or handle improvised explosive devices.

This snake-robot is scalable; it can be built however large or small as a subsystem to a larger platform that could travel over rough terrain and climbs stairs. The number of tentacles or snakes determines the breadth or scope of its search capabilities. The number of links on each of those tentacles supports each snake’s length or reach into an area, as well as its ability to crawl, swim, climb or shimmy through narrow spaces all while transmitting images to the Soldier who is operating the system.

The subsystem comes equipped with sophisticated electronic sensors, among them laser detection and ranging (LADAR) to render 3-D representations of object shapes and physical properties like faces, mass and center of mass.

army-mil-robotic-tentacle-manipulator-2

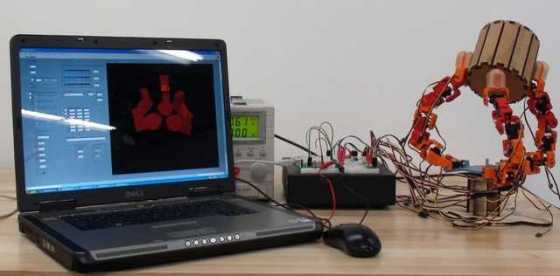

The developmental hardware includes a large-screen laptop, which presents a simple user interface. Each 24-centimeter (9.5-inch) tentacle is directed by a master controller system, which communicates with the motors that are embedded in each of the links found on the tentacles. The motors essentially direct individual tentacle movement and the master controller directs the entire amalgamation of snakes, or tentacles.

”The technology is leading to more than just the very tip of the snake being used in the object manipulation effect,” said Derek Scherer, a researcher who works within ARL’s Vehicle Technology Directorate. “Consider that snakes push off rocks or roots to propel their bodies. We are using this same concept in development.”

Its “touch sensitivity” allows the snake-robot to balance objects and feel where forces are being applied as it rotates devices.

”It allows it to lift and reposition objects, including improvised explosive devices, for examination, and do so in a controlled fashion that is unlikely to detonate any ordnance.” Scherer noted. “These same capabilities would improve inspections during cargo and checkpoint missions.”

Researchers predict the technology may one day solve the “opening a door” problem, which has been an obstacle to most of the robots so far. High levels of articulation in the manipulator could prove to be effective for grasping and rotating different types of door handles using knobs, handles, levers and bars.
